Energy-storage cells
CATL 587Ah
CATL 587Ah
LiFePO₄ cell for energy-storage projects. Compare the cell data below or explore a matched assembled battery.
Battery systems built with this cell
| Cell option | CATL 587Ah |
|---|---|
| Capacity | 587 Ah |
| Nominal voltage | 3.2 V |
| Nominal energy (capacity × voltage) | 1878.4 Wh |
| Width W | 218 mm |
| Depth D | 74 mm |
| Height H | 274 mm |
| Body height | To confirm |
| Height with terminals | To confirm |
| Weight | 9.83 kg |
| Manufacturer cycle reference | ≥8000 cycles · 25°C · 0.5P/0.5P · 70% capacity retention |
| Standard charge / discharge rate | 0.5P / 0.5P |
| Volumetric energy density | 434 Wh/L |
| Initial energy efficiency | 96.5% |

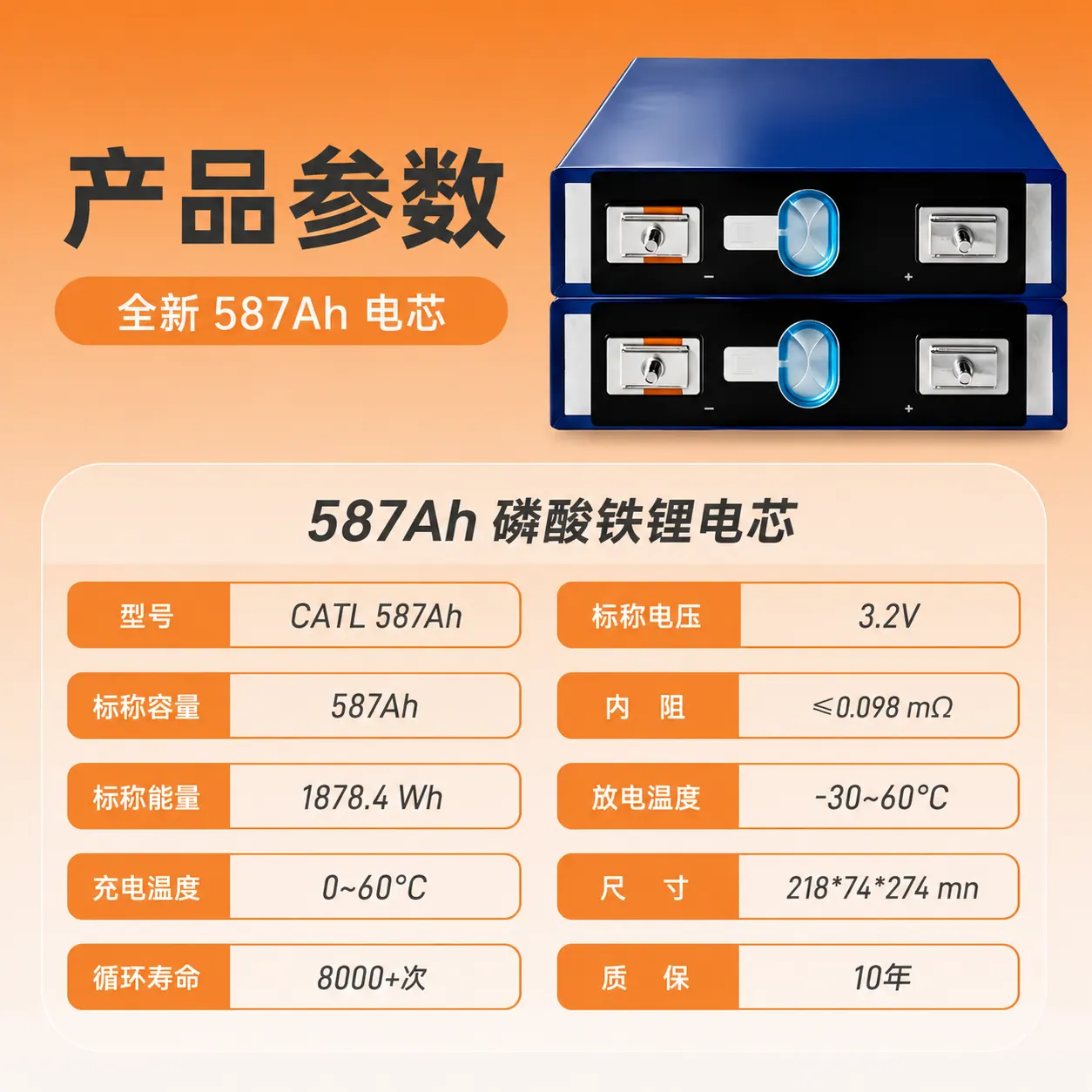

Dimensions: supplier-confirmed product image, mm. Body and terminal-inclusive heights are not distinguished; confirm terminals and assembly clearance before installation.
Manufacturer reference · CATL ↗
Manufacturer product overview · CATL ↗
Cycle figures are manufacturer references under the stated test conditions. P is a power rate; assembled battery performance depends on the BMS and supplied configuration.
Reference price per cellPrice excludes studs$90
Contact our customer service team to customize cells with welded studs.Ask about welded studs ↗
Reference prices exclude freight. Quantity, destination, taxes and exchange rate are confirmed in the quotation.
